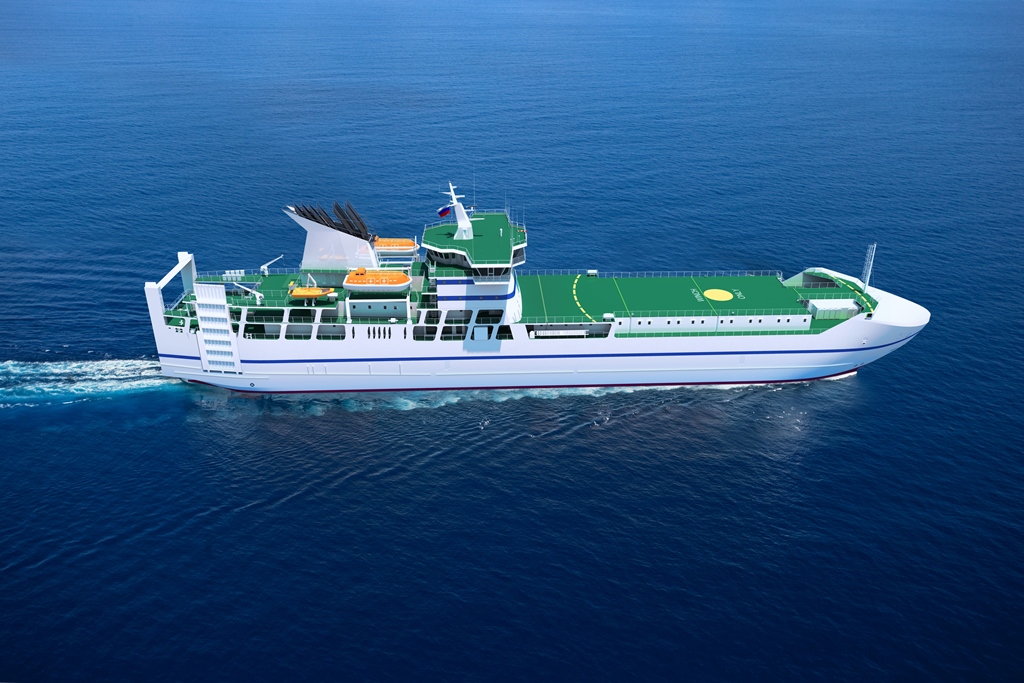

Railway-car and passenger ferry. Project 00300


KM Arc5 AUT1-ICS OMBO ANTI-ICE ECO Ro-ro passenger ship of Russian Maritime Register of Shipping


Carriage of railroad trains of the Russian standards with breadth of a track of 1520 mm, railway cars or road trains on the main deck, road trains on the lower deck, all kinds of automobiles including road trains with semi-trailer trucks and truckbeds, various wheeled vehicles, refrigerated containers, dangerous cargoes of 1.1-1.6; 1.4S; 2.1-2.3; 3; 4.1-4.3; 5.1; 6.1; 8 9 classes in compliance with IMDG Code and the National Regulations concerning the carriage of dangerous cargo by sea, as well as the passengers


  • Tank cars of T-1 loading gauge with a length of 12020 mm between couplers (four axles), pcs.                                                                        32
  • Gondola cars of Т-1 loading gauge with a length of 13920 mm between couplers (four axles) and a breadth of 3020 mm, pcs.                  26
  • Freight cars of T-1 loading gauge with a length of 14730 mm between couplers (four axles) and a breadth of 3020 mm, pcs.                    26
  • Trucks with a semitrailer of 12-13.5 m in length (road trains), without/with railway cars on the main deck, pcs. 39/12
  • Passenger cars in the hold (without road trains), pcs.                                                                                                                                               28
  • Passengers, pers.                                                                                                                                                                                                           200


  • Electric anchor/mooring winch, pcs.                                              4
  • Bow/stern thruster, pcs.                                                                2/1
  • Lifeboat, pcs. x pers.                                                                 2x150
  • Rescue boat SB/PS, pcs. x pers.                                        1x15/1x6
  • Liferafts, pcs.                                                                                     2
  • Marine evacuation system, pcs.                                                      2
  • Accommodation ladder, pcs.                                                           2
  • Place for lifting people by helicopter, pcs.                                    1
  • Cargo lift, pcs.                                                                                   1
  • Crane, pcs. x capacity х outreach                        2 x 0.99 t x 3.5 m
  • Stern door, pcs.                                                                                 1
  • Ramp for loading/unloading of wheeled vehicles, pcs.              1


JSC Amur Shipbuilding Plant, Komsomolsk-on-Amur

Main Features

  • Length overall, m 131.00
  • Length at DWL, m 125.02
  • Length between perpendiculars, m 120.73
  • Breadth overall, m 20.32
  • Depth up to the main deck (amidship), m 8.80
  • Depth up to the upper deck (amidship), m 14.80
  • Summer draft, m 6.6
  • Deadweight at summer draft, t ab. 4829
  • Speed/economical speed, knots 18/12
  • Cruising range at economical speed, miles 1500
  • Endurance, days 4
  • Crew and service personnel, pers. 35

Power plant

  • Main engine, pcs. x kW 4x4000
  • Shaft generator, pcs. x kW 2x2000
  • Auxiliary diesel generator, pcs. x kW 2x1140
  • Emergency diesel generator, pcs. x kW 1x414

Chief Designer

S.A. Milavin
